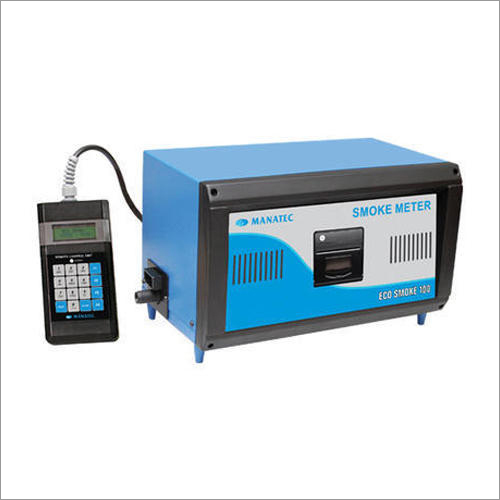

Diesel Smoke Meter

Diesel Smoke Meter
Diesel Smoke Meter
Product Code : 12
Brand Name : KND EQUIPMENT
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

We have huge knowledge about the advance market demands, as a result we export optimum grade Diesel Smoke Meter. Our offered machine is used to measure the smoke emitted by a diesel engine. The meter which we provide are very accurate & durable, thus demanded by different, garages and workshops. Our Diesel Smoke Meter is manufactured by our expert engineers by making use of superior technology and tools in technologically advanced infrastructure facility.

Approx Price: Rs 1.08 Lakh / Number
Minimum Order Quantity: 1 Number

Features:

  • Measures smoke opacity of diesel vehicles in % opacity and K value
  • Measurement principle: Partial flow, optics based on folded geometry
  • Suitable for free acceleration test
  • Engine RPM measurement – vibration sensor based and Battery based
  • Engine oil temperature measurement
  • Operates on 230V AC (or) 2V DC power supply
  • Portable, Compact light weight design, suitable for “Road tests” using vehicle battery
  • Low High voltage indication for battery operation
  • Automatic Zero and Span calibration
  • Automatic Pressure regulation and moisture separation
  • Handheld, Menu-driven LCD remote control unit
  • Pass / Fail indication and emission limit in printout
  • Vehicle no, vehicle specification, operator name and test data in printout
  • RS232C serial port for PC interface
  • Accelerometer based RPM measurement
  • Compatible for Diesel vehicles
  • The Engine RPM meter allows easy measurement of RPM
  • Use of multiple acquisition systems
  • Standard Accessories:
  • Smoke sampling hose
  • Oil temperature probe
  • Smoke sampling probe ID 16 mm
  • Battery cable (for DC operation Engine RPM measurement)
  • Optional Accessories:
  • Smoke sampling probe ID 10 22.5 mm Vertical exhaust extension pipe
  • Smoke test software RS232 Interface cable
  • Thermal Printer

Specifications:

  • Measurement parameters Range Resolution
  • Opacity 0 - 99.9% 0.10%
  • K-value 0 - 9.99m1 0.01m1
  • Linearity ± 0.1m1
  • Repeatability ± 0.1m1
  • Zero Pan drift ± 0.1m1
  • Response time - physical < 0.4 Seconds
  • Response time - Electrical < 1 Millisecond
  • Warm-up time @25°C above < 7 Minutes
  • Engine RPM (Battery-based) 400 - 9990 RPM 10 RPM
  • Oil Temperature 0 - 150°C 1°C
  • Operating temperature +5°C to +50°C
  • Smoke Measuring cell length 215mm (430 mm folded length)
  • Power Supply 12V DC ±2V battery 100-265V AC, Single phase, 50-60Hz
  • Power 300W AC / 100W DC (Without heater)


Additional Information:

Item Code: ECO-SMOKE-100
