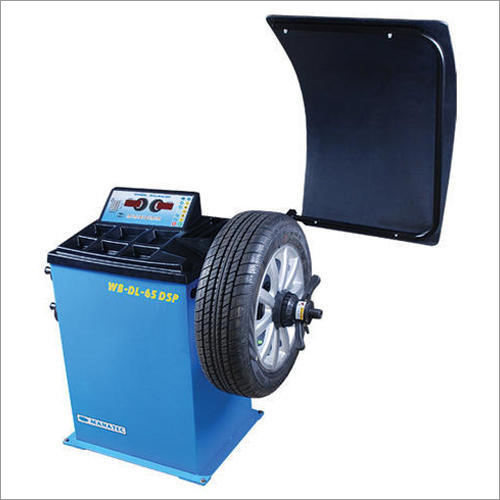

Automatic Wheel Balancer

Automatic Wheel Balancer
Automatic Wheel Balancer
Product Code : 06
Brand Name : KND EQUIPMENT
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Supported by our team team members, we are able to offer high quality Automatic Wheel Balancer. Our offered balancer we provide are widely demanded by our customers for their perfect balancing point and easy operation. Our provided machine is best for vehicles and small trucks as these are very long lasting and delivers high performance. We made the Automatic Wheel Balancer in our huge infrastructure facility by making use of best in class grade materials and components, sourced from the top vendors of the industry.



Salient Features

  • Automatic start with Wheel guard closure

  • Electrical & Mechanical brake system

  • Static (Single plane) and Dynamic (Two plane) balancing

  • Two modes of measurements – Normal and Fine

  • Five modes of Alloy wheel functions (only for Cars)

  • Automatic distance input mechanism

  • Manual measurement of Rim Diameter & Rim width

  • Auto unbalance recalculation without Wheel Run on input parameters change

  • Adjustable unbalance threshold (Weight cutoff) (9gm to 15gm for Cars)

  • Dimension setting in "inch" or "mm" & Unit conversion in "grams" / "ounces"

  • Self diagnostic, On-line error display facility & Self calibration

  • Pneumatic wheel lifter allows to lift the heavy truck wheel upto 200 kgs

  • Monitor type console design with LED display for digital model & LED Monitor for Video model





TECHNICAL SPECIFICATION
Maximum wheel Weight 200kg
Maximum wheel Diameter 50" (1270mm)
Maximum wheel Width 21" (533mm)
Rim Diameter 10" to 26" (254mm to 660mm)
Rim Width 1.5" to 20" (38mm to 508mm)
Accuracy 1 gm for Cars / 10 gms for Trucks
Position accuracy ± 1°
Balancing speed 200 RPM for Cars / 100 RPM for Trucks
Air supply requirement 6 – 8 bar
Motor Power 0.55kw
Power supply 400V AC ± 5%, 3Ph, 50Hz
Power 750W (Digital) / 900W (Video)
