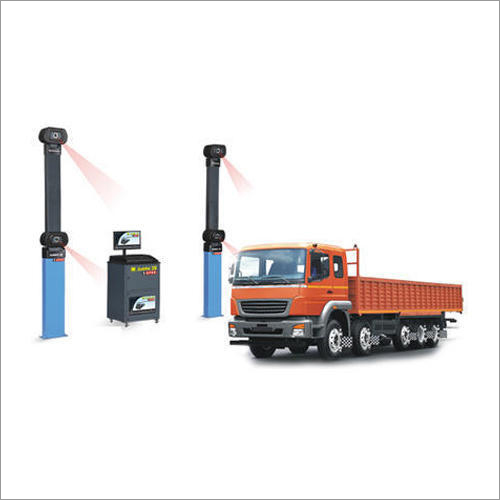

3D Wheel Aligner

3D Wheel Aligner
3D Wheel Aligner
Product Code : 07
Brand Name : KND EQUIPMENT
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Owing to our huge market expertise & perfect business approach, we are noted amongst the cardinal trader of 3D Wheel Aligner. Best for all cars and LCV's, this alinger is provided to our customers without any delay. Equipped with a computer, 80 column printer, infrared cordless remote control,3.5" floppy disk drive, large storage cabinet, a keyboard and sensor holders, 3D Wheel Aligner is widely demanded by automobile industries. Our customers can easily avail this 3D Wheel Aligner from us at market leading rates.

Approx Price: Rs 13.23 Lakh / Number
Minimum Order Quantity: 1 Number

Product Details:

Brand:Manatec

Features:

  • World’s 1st 3D Wheel Aligner for Multi-Axle Trucks, Buses Trailers
  • One shot Runout compensation of all 5 axles
  • One shot Caster swing for twin steer axles
  • Innovative Image Processing technology
  • No Electronics on Wheels
  • Mobile stands for storing Wheel brackets Targets
  • Extra monitor provided to view screen underneath from the PIT
  • Ideal for all workshops, tyre shops OEM end of line requirements
  • One Shot Runout Compensation: All 10 targets are mounted on 5 axles at a time and Runout is performed
  • No Electronics On Wheels: No expensive service bills due to accidental drop of electronic sensors No sensor calibration issues
  • Universal Wheel Bracket
  • Standard Accessories:
  • Wheel Brackets (12"-24"): 10 No
  • Target Plate: 10 No
  • Rotary plate (7 Ton): 4 No
  • Steering lock: 1 No
  • Brake pedal lock HCV: 1 No
  • Brake pedal lock LCV: 1 No
  • Adapter for Rim locking pin: 40 No
  • PC with LED Monitor, Keyboard Mouse: 1 No
  • Wheel Alignment Data Manager Software: 1 No
  • Optional Accessories:
  • Wheel Bracket Extension Adapters
  • Rim locking pin for Standard Steel rims
  • Rim locking pin for run flat tyre rims Fancy disc
  • “Autodata” Software
  • Printer
  • Trailer Kingpin Gauge
  • Frame Offset Gauge
  • Tyre Dial Gauge
  • Single Axle Adjuster
  • Air Mouse Remote
Specifications:
  • Measurement ParametersRangeAccuracy
  • Camber (Front / Rear) ± 15° 00' ± 00° 02'
  • Caster ± 28° 00' ± 00° 05'
  • Kingpin Inclination ± 25° 00' ± 00° 05'
  • Teo (Front / Rear) ± 20° 00' ± 00° 02'
  • Total Toe ± 40° 00' ± 00° 04'
  • Setback (Front/ Rear) ± 25mm ± 2mm
  • Scrub / Thrust Angle ± 10° 00' ± 00° 02'
  • Runout ± 10° 00' ± 00° 02'
  • Included Angle ± 40° 00' ± 00° 05'
  • Track Width difference ± 150 mm ± 2 mm
  • Toe out on Turns (Optional) ± 20° 00' ± 00° 20'
  • Lock angle (Optional) ± 60° 00' ± 00° 20'
  • Power Supply 230V AC, 50Hz
  • Power 250W

Additional Information:
  • Item Code: Jumbo-3D-Super
Trade Information
  • Payment Terms
  • Cheque, Others
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
